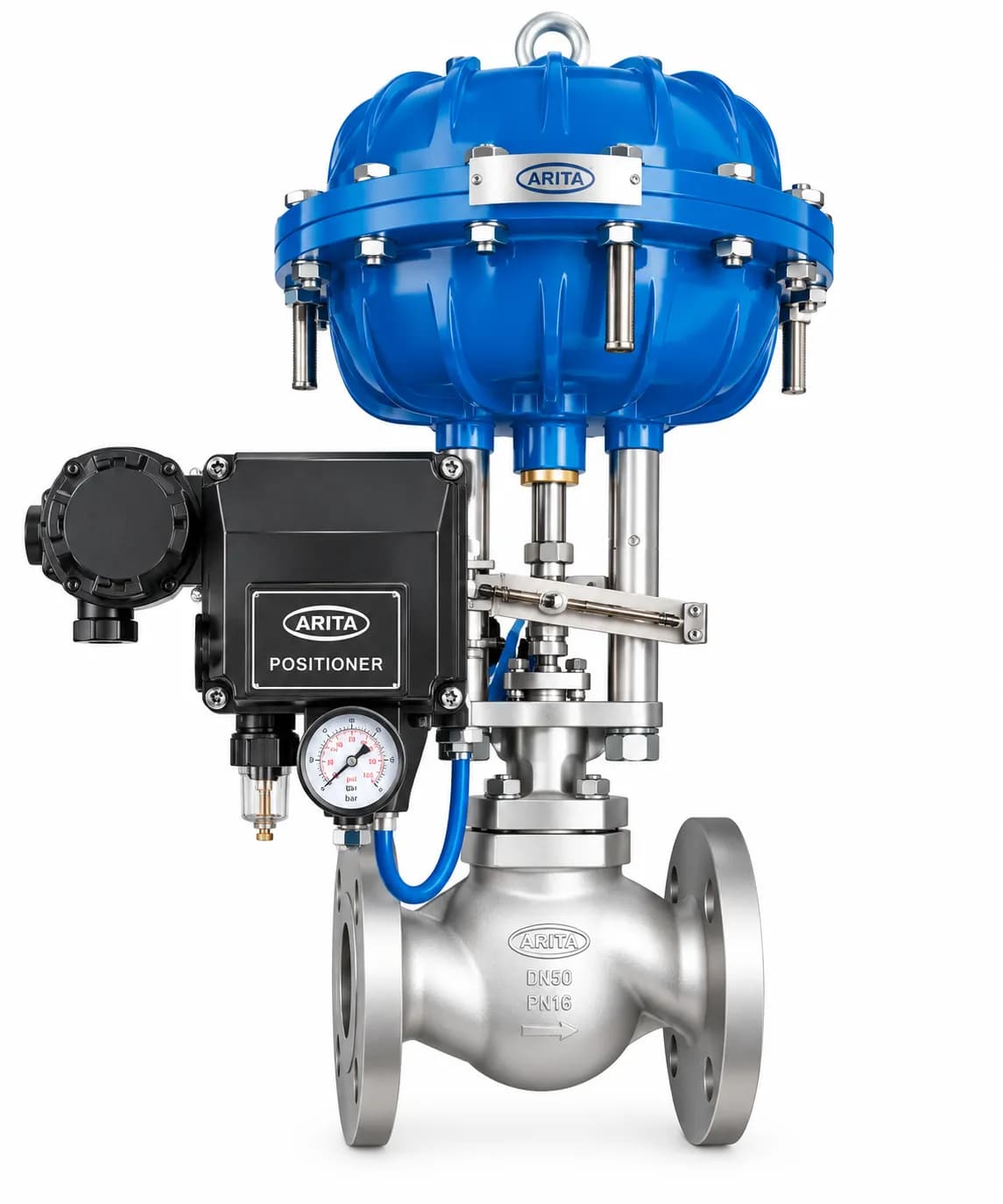

Globe Control Valve

Engineered as a high-precision throttling and modulating solution for severe process applications, our Globe Control Valve Series delivers exceptional linear or equal-percentage volumetric flow control across high-differential pressure gradients. Operating on a cage-guided or top-guided plug mechanism, the valve modulates fluid dynamics with extreme repeatability, mitigating destructive localized velocities, aerodynamic noise, and hydrodynamic cavitation. Designed with a heavy-duty, flow-efficient globe body cavity, it ensures maximized flow capacity (Cv ratings) while minimizing turbulence and downstream pressure drops, accommodating everything from clean utilities to aggressive chemical processes.

Body Material

Carbon Steel & Stainless steel (2 way), Ductile Iron GGG40.3 ( 3 way)

Connection

Flange, Butt Weld

Actuator

Pneumatic or Electric

Model

2-Way, 3-Way

Size

DN 15 – DN 200 (1/2” – 8”)

Pressure Rating

PN 16 – PN 160, ANSI 150 – ANSI 600

Function

On-Off. Modulation

Process Media

Liquid, Gas, Steam
