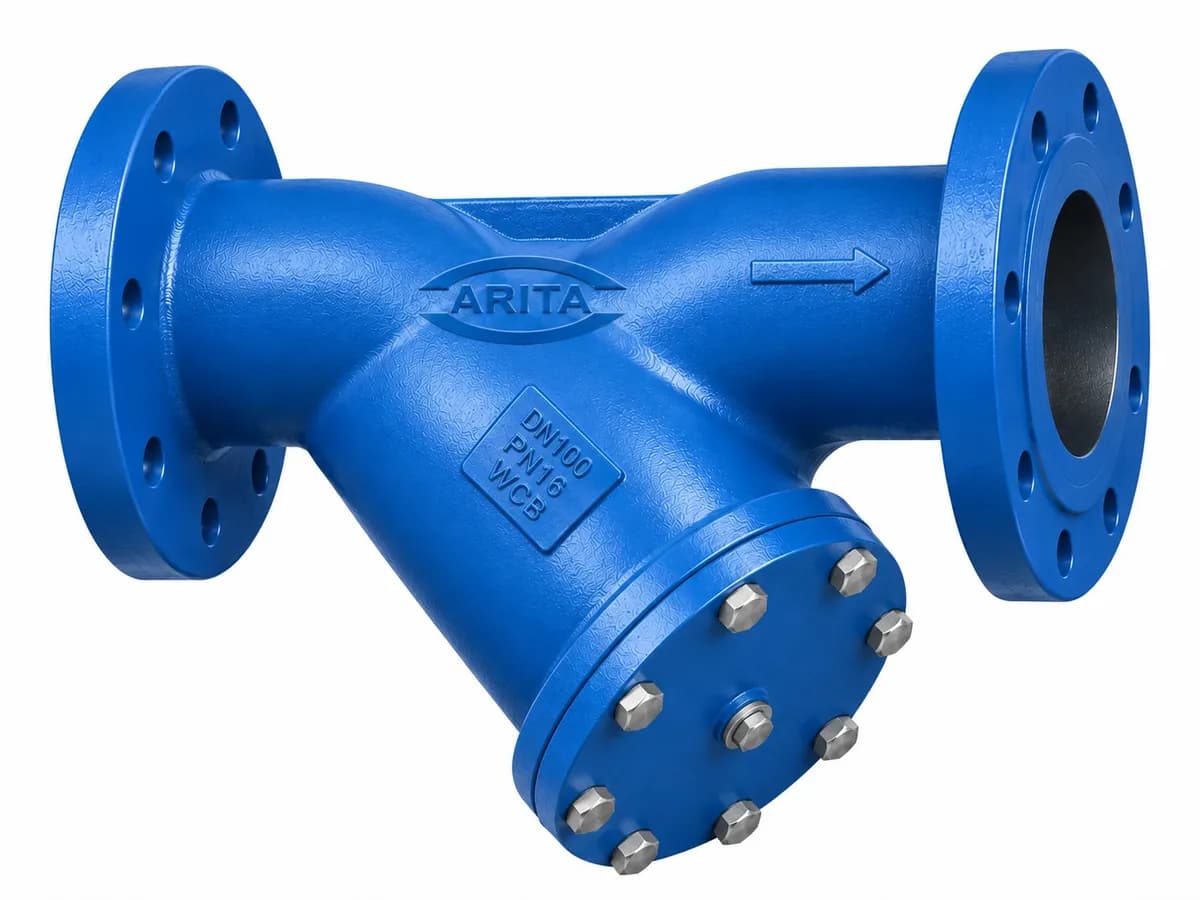

Y Strainer

Engineered to protect downstream equipment from damage caused by debris, scale, and foreign particles, our Y-Strainer provides efficient, low-maintenance mechanical filtration for steam, liquid, and gas pipelines. Named for its compact "Y" configuration, this inline strainer channels process media through a perforated or wire mesh screen element, capturing solid impurities while maintaining optimal flow rates with minimal pressure drop.

Body Materials

Cast Iron (GG25), Ductile Iron (GGG40), Cast Steel (A216 WCB), Stainless Steel (CF8 / CF8M / SS316)

End Connections

Flanged, Threaded, Socket Weld, Butt Weld

Nominal Size Range

1/2” – 24” ( DN15 - DN600 )

Screen Element Material

Stainless Steel 304/316/316L

Mesh Size

20 Mesh to 200 Mesh

Pressure Rating

ASME Class 150-600, EN Class PN16 - PN40, JIS 10K-30K

Process Temperature

$-20^\circ\text{C}$ to $+400^\circ\text{C}$ (Depending on body material and gasket option)
