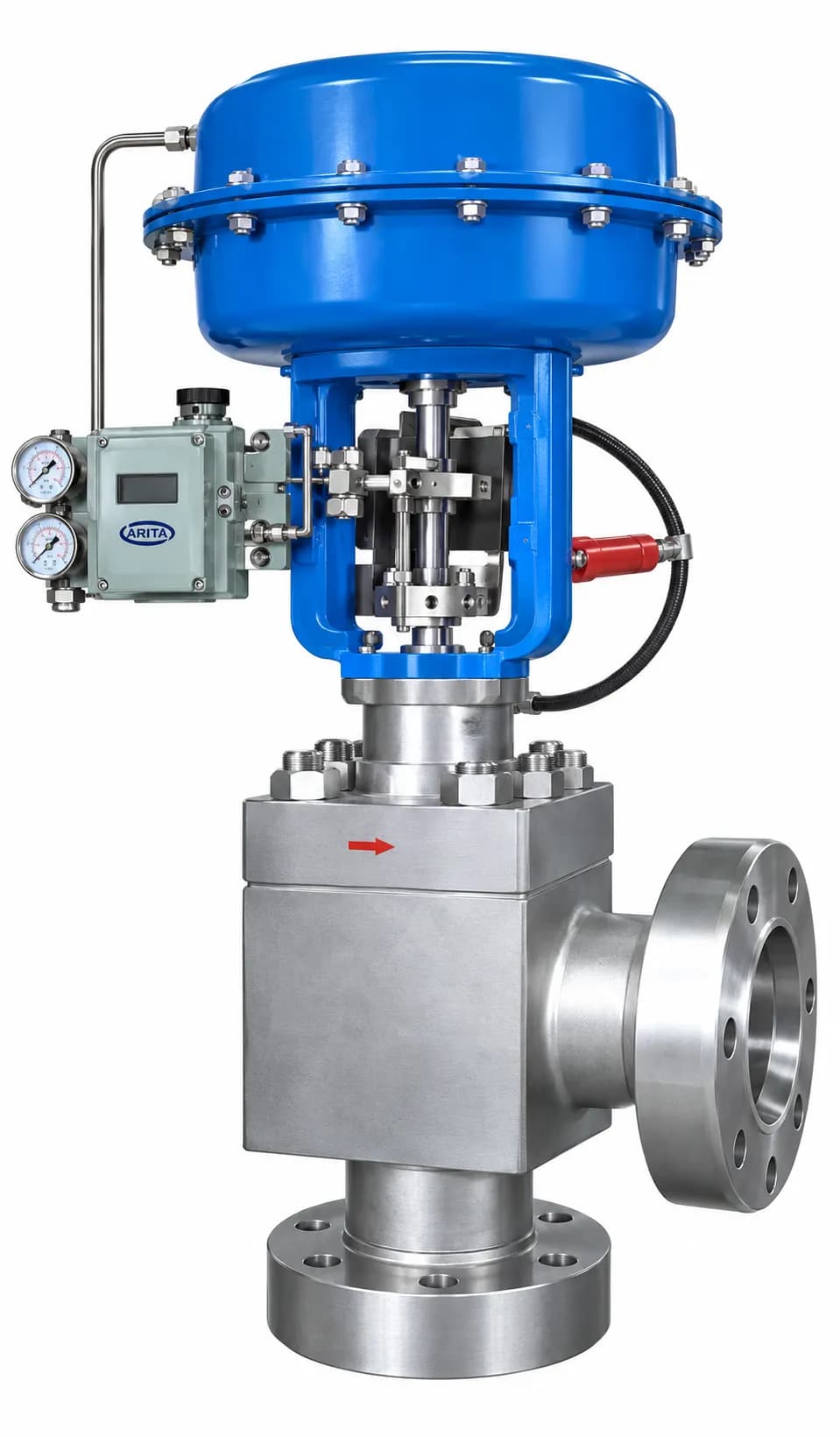

Angle Globe Control Valve

"Precision Control. Optimized Geometry. Zero Compromise." Built for the toughest industrial environments, our Angle Globe Control Valve merges accurate flow regulation with an space-saving 90° angle design. Acting as both a high-performance control valve and a piping elbow, it effectively eliminates turbulence, resists severe wear, and delivers long-lasting reliability in high-pressure and erosive services.

Body Material

Carbon Steel (WCB, WCC), Stainless Steel (CF8M, CF8, CF3M, CF3), Alloy Steel (WC6, WC9)

Pressure Rating

ANSI Class 150 to 600 (PN 16 to PN 40), JIS 10K-40K

Size Range

NPS 3/4" to 16" (DN 20 to DN 400)

End Connections

Flanged (FF/RF/RTJ), Butt-Weld (BW), Socket-Weld, Threaded

Actuator Options

Pneumatic Diaphragm Actuator, Pneumatic Piston Actuator, Electric Motor-Operated Actuator

Flow Characteristic

Equal Percentage, Linear, Quick Opening
