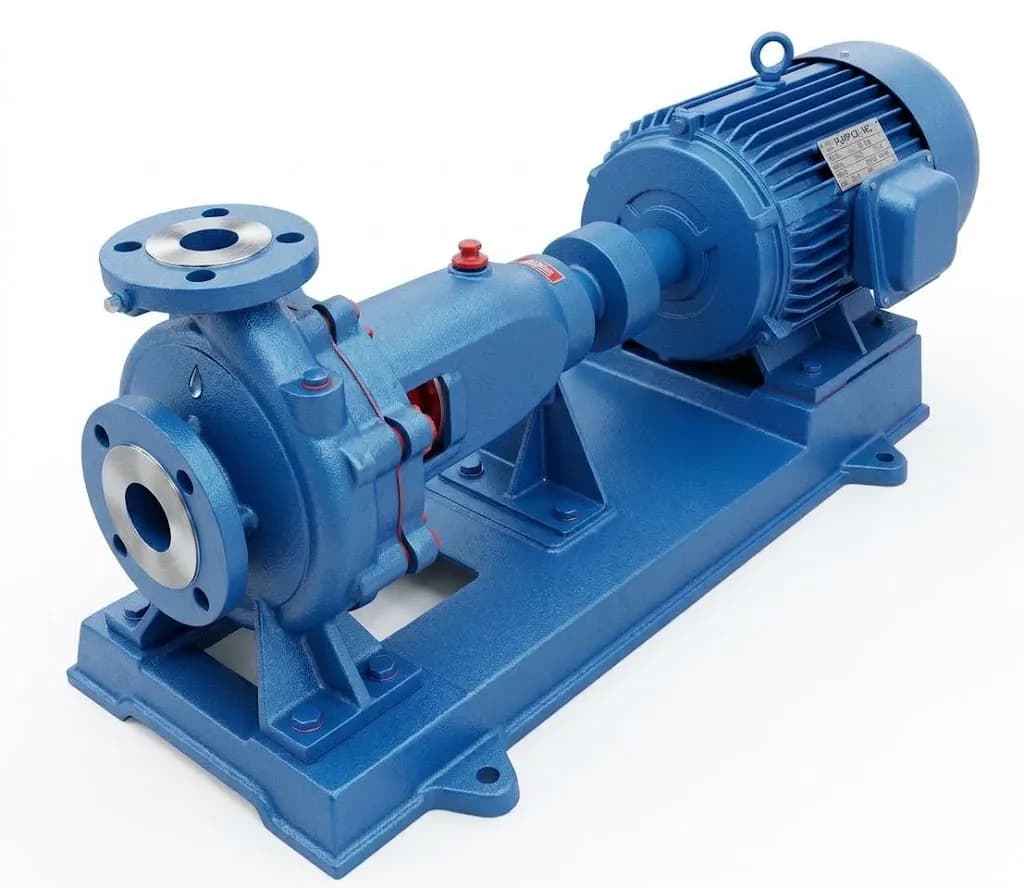

Centrifugal End Suction Pump

"Precision Engineering for Uninterrupted Fluid Transmission." Streamline your plant utilities with our high-performance End Suction Centrifugal Pump. Featuring a axial suction and radial discharge configuration with dynamically balanced impellers, it eliminates piping stress, minimizes hydraulic turbulence, and provides long-lasting, low-NPSH performance in high-temperature, clean liquid, and chemical applications.

Model

AR series

Suction Diameter

2"-14" (DN50-DN350)

Discharge Diameter

1 1/4" - 12" (DN32-DN300)

Flow Rate Capacity

2 - 1100 m3/h

Head

2 - 150 metre

Power

0.75 - 200kW ( 1 HP - 270HP)

Motor Speed

1450 or 2900 Rpm (50Hz), 1750 or 3500 Rpm (60Hz)

Casing Material

Cast Iron, Stainless Steel

Impeller Material

Cast Iron, Stainless Steel

Shaft Material

ASTM 420, ASTM316

Seal

Mechanical Seal / Gland packing

Process Temperature

-10°C - 105°C
