Vortex Flow Meter: Definisi, Fungsi, Jenis dan Spesifikasinya

1. 0 PENGERTIAN

Vortex Flow Meter bekerja berdasarkan prisnip karman yang berputar dihasilakan oleh media yang mengalir dalam pipa. Vortex Flowmeter banyak di gunakan untuk gas, steam, dan aplikasi cair. Vortex Flowmeter ini sangat ideal untuk measuring saturated dan superheated.

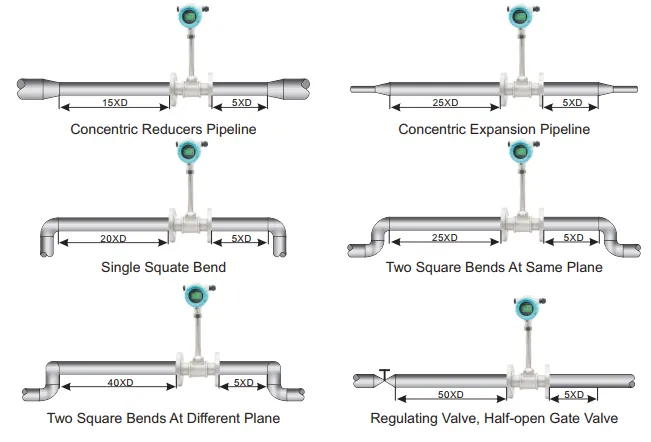

1.1 APLIKASI

Vortex Flowmeter ini bisa di gunakan untuk media : saturated steam, superheated steam, compressed air, nitrogen, liquefied gas, carbon dioxide, demineralized water, solvent, heat transfer oil, boiler, feedwater, condensate dan lain-lain.

1.2 FITUR

• Pressure and temp compensation

• 4-20 mA, pulse with HART or pulse with RS485 are selectable

• Temperature range up to highest temperature 350oC

• Japan OVAL technology design

• All Body SS304 ( SS316 Selectable )

1.3 Jenis Vortex Flowmeter

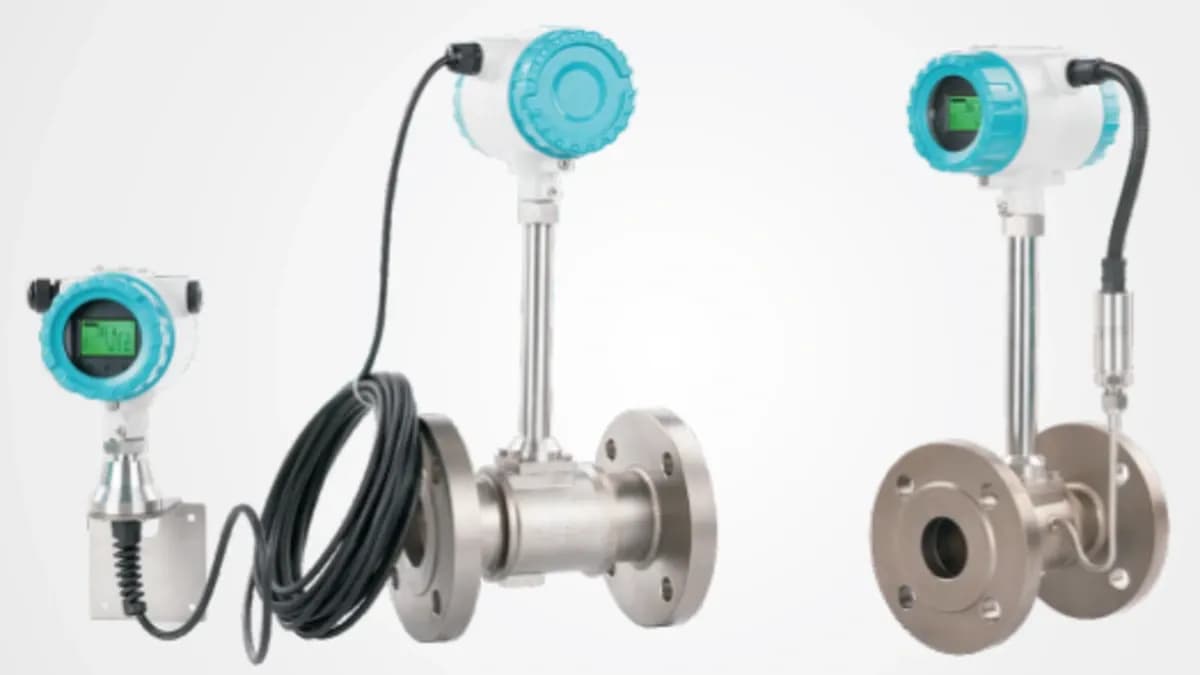

Vortex Flowmeter terbagi menjadi dua tipe yaitu Tipe Integral dan Tipe Remote, Di Bawah ini adalah contoh tipe integral ( Compact Type ) dan tipe remote Vortex Flowmeter mempunyai berbagai macan tipe, yaitu :

• Flange Connection

• Water Connection

• Tri-clamp Connection

• Thread Connection

• Insertion Type

1.4 SPESIFIKASI

Measured Medium	Liqud, Gas, Steam
Medium Temp.	-40 ~ 250oC ; -40 ~ 350oC (high temperature type)
Pressure	FLANGE
Wafer	4.0MPa
Thread	1.6MPa
Tri-Clamp	1.6MPa
Insertion	1.6MPa
Accuracy	±1.0% (Flange/Wafer/Thread/Tri-clamp) ±1.5% (Insertion type)
Flow Range	Liquid:0.4-7.0m/s; Gas:4.0-60.0m/s; Steam:5.0-70.0m/s
Spesifications	DN15-DN300 (flange/wafer type) DN80-DN2000 (insertion type) DN15-DN100 (thread/sanitary type)
Body Material	SS304 (standard) SS316 (optional)
Reynolds Number	Normal 2x104 ~7x106
Resistance Coeffiecient	Cd<2.6
Vibration Acceleration Allowed	<0.2g
IEP ATEX	IIG Exia IICT5 Ga
Ambient Condition	Ambient Temp	-40oC~65oC (Non ex-proof site) -20oC ~55oC (Ex-proof site)
Relative Humidity	<85%
Pressure	86-106kPa
Power Supply	DC12-30V or 3.6V lithium battery powered
Signal Output	4-20mA, Pulse
Communication	RS485 Modbus, For HART Com Selectable

1.5 DIMENSI

Flange Connection Type ( DIN PN16 as Reference )

Size	L	H	d	D1	D2	n-D3
DN15	170	440	15	65	95	4-φ14
DN20	170	445	20	75	105	4-φ14
DN25	170	450	26	85	115	4-φ14
DN32	170	462	32	100	140	4-φ18
DN40	190	465	38	110	150	4-φ18
DN50	190	473	48	125	165	4-φ18
DN65	220	487	62	145	185	4-φ18
DN80	220	500	73	160	200	4-φ18
DN100	240	533	95	180	220	4-φ18
DN125	260	560	118	210	250	4-φ18
DN150	280	608	140	240	285	8-φ22
DN200	300	640	200	295	340	12-φ22
DN250	360	705	250	355	405	12-φ26
DN300	400	752	300	410	460	12-φ26
