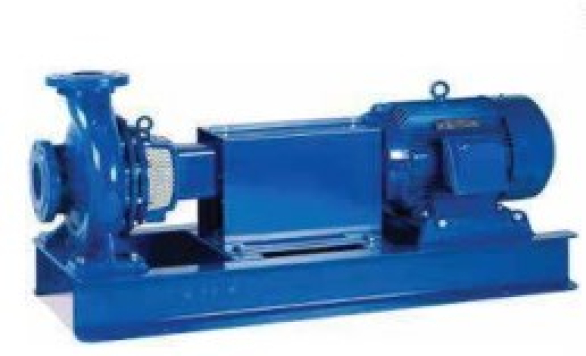

SINGLE STAGE END SUCTION CENTRIFUGAL PUMP

AR 65 / 20 -CI - CI - GP

AR  : Arita product

65   : Discharge Size (mm)

20   : Impeller Diameter (cm)

CI   : Casing Material

CI    : Impeller Material

GP   : Shaft Seal (GP : Gland Packing / MS : Mech Seal)

Application Area

Suitable for transfer water in Irrigation, Sanitary uses , Building , and etc.

Operating Limits

Flow Rate    : 2 - 1100m3/h

Head    : 2 - 150m

Speed    : 1450 Rpm or 2900Rpm (50Hz)

Temperature    : -10'C ~ 105'C (for another temperature , by Request)

Pressure    : 10 Bar Standard (16 Bar by Request)

Material For Casing and Impeller

CI    : Cast Iron

BR    : Bronze (only for Impeller)

DI    : Ductile Iron (Only for Casing)

SS304    : Stainless Steel 304

SS316    : Stainless Steel 316
