2. SANITARY REVERSING VALVE

Kategori Produk

SANITARY REVERSING VALVE

Publish Date : 19-Mei-2020
Kategori : Sanitary & Fitting Flange

Specification

Body Material AISI 304 / AISI 316
Sealing Materia TFE, O type seal ring
Up Diaphragm NBR Diaphragm and standard diaphragm
Down Diaphragm PTFE, EPDM rubber and standard diaphragm
O Type Ring NBR Diaphragm and standard diaphragm
Connection Type

 Weld Connection

Tri-Clamp Connection

Size  1 Inch - 4 Inch/ DN25 - DN100
Working Pressure Max 10 Bar
Inside Treatment Ra?0.4 - 0.8 u m
Outside Treatment Ra?0.8 -1.6 u m

Application

Sanitary reversing valve has very flexible design which meets sanitary requirements, and is mainly used in pipeline system without contaminant or mixture. As a modern and widely used valve, it is mainly use in wine brewing, dairy, beverages, and pharmaceutical industries.


Operating System

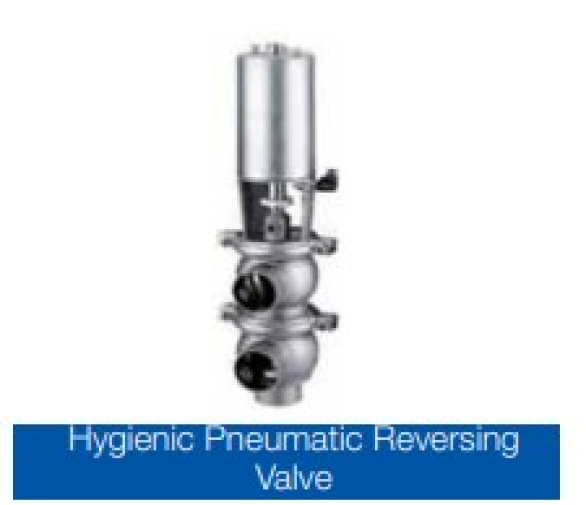

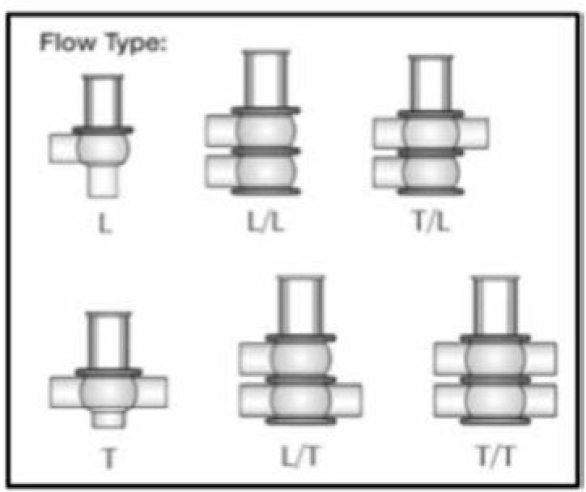

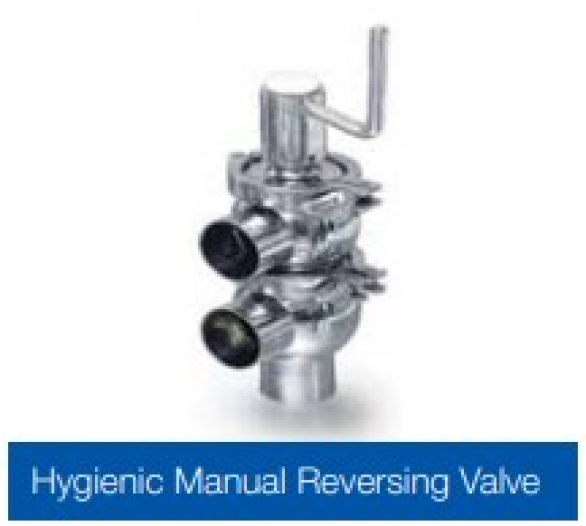

Sanitary reversing valve is remotely operated by means of compressed air or manula. By controlling the relative position of valve plug, it makes the valve open or closed (Shutt- off type), or changes the flow direction of media. Sanitary reversing valve can be installed with smart controller
