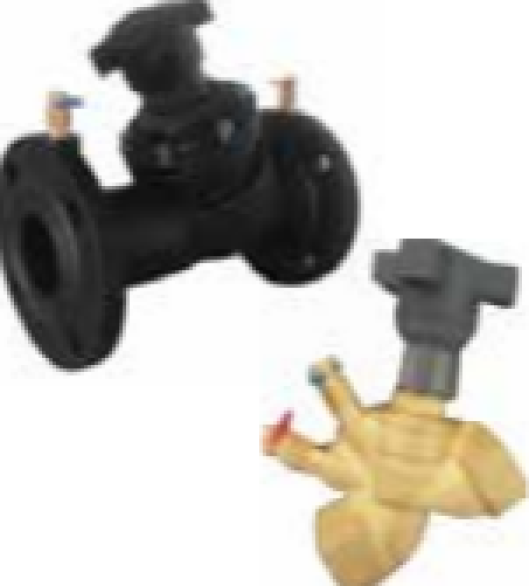

Balancing Valve


Publish Date : 02-Des-2016
Category : Control Valve

Price :

Call Us
Get Quote

Description


Specifications:

Flange Static Balancing Valve

Valve Body                                            : Cast Iron

Sealing Element                                    : EPDM

Nominal Pressure                                 : PN 16/PN 25

Max Operating Differential Pressure     : 1,2 MPa/2,5 MPa (Limited by the noise level)

Medium Temperature Range                 : -10~120 degC

Size                                                       : DN 50-DN 400

Connection                                            : Flange

Applicable  Medium                               : Mixture of water & Ethylene Glycol


Brass Static Balancing Valve

Size                                                  : DN 15~DN50

Flow Precision                                 : ±5% (50%-100% opening)

Pressure Rating                              : 20 bar (290 psi)

End Connections                            : Screw Connection, ISO228 (Equivalent to DIN259 and BS2779)

Medium                                           : Water, water-glycol mixture

Media Temperature                        : 0 degC ~120 degC

Ambient Temperature                    : 0~65 degC

Shipping & Storage Temperature  : -40 ~ 65 degC
